iOS - Debugger Detection Bypass

Apps that try to detect debuggers on iOS use three primary techniques: ptrace(PT_DENY_ATTACH) to refuse attachment, sysctl to check the process’s P_TRACED flag, and getppid() comparisons. Each is bypassable with one Frida hook. Apps that ship these as their only debugger defence are not actually defended.

Vector 1, ptrace PT_DENY_ATTACH

The classic. The app calls:

extern int ptrace(int request, pid_t pid, caddr_t addr, int data);
#define PT_DENY_ATTACH 31
ptrace(PT_DENY_ATTACH, 0, 0, 0);

This tells the kernel “do not let any debugger attach to this process”. If a debugger is already attached when the call happens, the kernel SIGKILLs the process. If a debugger tries to attach later, the attach fails.

The bypass: intercept the ptrace call and turn it into a no-op:

const kernLib = Process.findModuleByName('libsystem_kernel.dylib');
const ptrace = kernLib && kernLib.findExportByName('ptrace');
if (ptrace) Interceptor.attach(ptrace, {
    onEnter: function (args) {
        if (args[0].toInt32() === 31) {     // PT_DENY_ATTACH
            console.log('[ptrace PT_DENY_ATTACH] intercepted');
            args[0] = ptr(0);                // replace with PT_TRACE_ME (harmless)
        }
    }
});

The app’s call to ptrace(PT_DENY_ATTACH, ...) becomes a no-op. The kernel does not lock down the process. Frida (which has to attach before the ptrace call fires) survives.

The timing nuance: if the app calls ptrace(PT_DENY_ATTACH) very early in startup (load time methods or +initialize), Frida via frida -F (cold-spawn) catches it. Frida via frida -n (attach to running process) fails because the call already fired.

Vector 2, sysctl P_TRACED

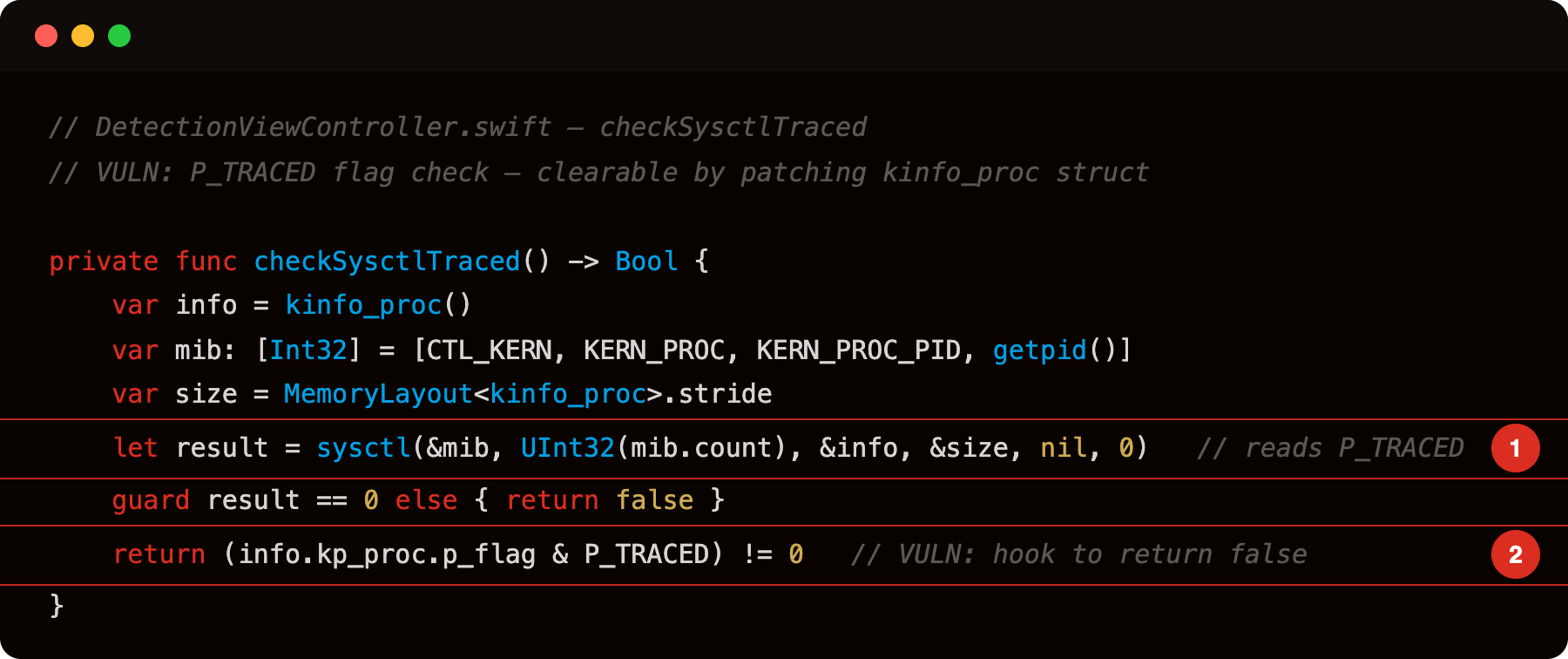

VulnLabAppiOS’s checkSysctlTraced:

Highlight 1 is sysctl(&mib, UInt32(mib.count), &info, &size, nil, 0) - reads the kernel kinfo_proc structure for the current PID; the P_TRACED flag inside that structure indicates a debugger is attached.

Highlight 2 is return (info.kp_proc.p_flag & P_TRACED) != 0 - a single Frida hook on sysctl that clears p_flag in the output buffer zeroes this entire detection; the function then returns false regardless of actual debugger state.

The kernel reports the process’s current flags via sysctl. If the P_TRACED flag is set (debugger attached), the check fires.

Bypass: hook sysctl and clear the flag from the returned struct:

const kernLib = Process.findModuleByName('libsystem_kernel.dylib');
const sysctl = kernLib && kernLib.findExportByName('sysctl');
if (sysctl) Interceptor.attach(sysctl, {
    onEnter: function (args) {
        this.mib = args[0];
        this.namelen = args[1].toInt32();
        this.oldp = args[2];
    },
    onLeave: function (retval) {
        if (this.namelen < 4) return;
        const mib0 = this.mib.readU32();
        const mib1 = this.mib.add(4).readU32();
        const mib2 = this.mib.add(8).readU32();
        if (mib0 === 1 /* CTL_KERN */ && mib1 === 14 /* KERN_PROC */ &&
            mib2 === 1 /* KERN_PROC_PID */) {
            // The oldp now contains struct kinfo_proc. Find p_flag and clear P_TRACED.
            // kp_proc starts at offset 0 in struct kinfo_proc.
            // p_flag is at offset 32 within struct extern_proc (kp_proc).
            const pFlagAddr = this.oldp.add(32);
            const flag = pFlagAddr.readU32();
            const P_TRACED = 0x00000800;
            if (flag & P_TRACED) {
                pFlagAddr.writeU32(flag & ~P_TRACED);
            }
        }
    }
});

The check sees p_flag without the P_TRACED bit. Detection passes.

Vector 3, getppid

VulnLabAppiOS’s checkGetppid:

private func checkGetppid() -> Bool {
    return getppid() != 1
}

On non-debugged processes the parent is launchd (PID 1). On debugged processes the parent is the debugger.

Bypass — spoof the syscall return value:

const kernLib = Process.findModuleByName('libsystem_kernel.dylib');
const getppid = kernLib && kernLib.findExportByName('getppid');
if (getppid) Interceptor.attach(getppid, {
    onLeave: function (retval) {
        retval.replace(1);
    }
});

Note: checkSysctlTraced and checkGetppid are private Swift methods — no @objc thunk, not hookable by ObjC selector. Hook the underlying syscalls instead (shown above).

The check sees parent PID 1, concludes no debugger.

The exit-on-detect pattern

Apps that detect a debugger typically respond with one of:

exit(0);
abort();
_exit(0);
*(char*)0 = 0;    // intentional crash

The exit hooks itself:

const cLib = Process.findModuleByName('libsystem_c.dylib');
['exit', 'abort', '_exit'].forEach(function (sym) {
    const addr = cLib && cLib.findExportByName(sym);
    if (!addr) return;
    Interceptor.attach(addr, {
        onEnter: function () {
            console.log('[' + sym + '] called - stack:');
            console.log(Thread.backtrace(this.context, Backtracer.ACCURATE)
                .map(DebugSymbol.fromAddress).join('\n'));
        }
    });
});

Watching the stack at the moment of exit tells you which check fired and where. Then apply the specific bypass and re-attach.

The combined drop-in script

The three vectors plus the exit watcher stitch into a single file. Save as ios-debug-bypass.js:

// frida -U -f com.vulnlab.iosapp --no-pause -l ios-debug-bypass.js
setTimeout(function () {
    const kernLib = Process.findModuleByName('libsystem_kernel.dylib');
    const cLib    = Process.findModuleByName('libsystem_c.dylib');

    // 1. ptrace PT_DENY_ATTACH → no-op
    const ptrace = kernLib && kernLib.findExportByName('ptrace');
    if (ptrace) Interceptor.attach(ptrace, {
        onEnter: function (args) {
            if (args[0].toInt32() === 31) args[0] = ptr(0);  // PT_DENY_ATTACH → harmless
        }
    });

    // 2. sysctl P_TRACED → cleared
    const sysctl = kernLib && kernLib.findExportByName('sysctl');
    if (sysctl) Interceptor.attach(sysctl, {
        onEnter: function (args) {
            this.mib     = args[0];
            this.namelen = args[1].toInt32();
            this.oldp    = args[2];
        },
        onLeave: function (retval) {
            if (this.namelen < 4) return;
            const mib0 = this.mib.readU32();
            const mib1 = this.mib.add(4).readU32();
            const mib2 = this.mib.add(8).readU32();
            if (mib0 === 1 && mib1 === 14 && mib2 === 1) {  // CTL_KERN, KERN_PROC, KERN_PROC_PID
                const pFlagAddr = this.oldp.add(32);
                const flag = pFlagAddr.readU32();
                const P_TRACED = 0x00000800;
                if (flag & P_TRACED) pFlagAddr.writeU32(flag & ~P_TRACED);
            }
        }
    });

    // 3. getppid → 1
    const getppid = kernLib && kernLib.findExportByName('getppid');
    if (getppid) Interceptor.attach(getppid, {
        onLeave: function (retval) { retval.replace(1); }
    });

    // 4. exit watcher — identify which check fired if bypass is incomplete
    ['exit', '_exit', 'abort'].forEach(function (sym) {
        const addr = cLib && cLib.findExportByName(sym);
        if (!addr) return;
        Interceptor.attach(addr, {
            onEnter: function () {
                console.log('[' + sym + '] called');
                console.log(Thread.backtrace(this.context, Backtracer.ACCURATE)
                    .map(DebugSymbol.fromAddress).join('\n'));
            }
        });
    });

    console.log('[*] debugger bypass hooks armed');
}, 2000);

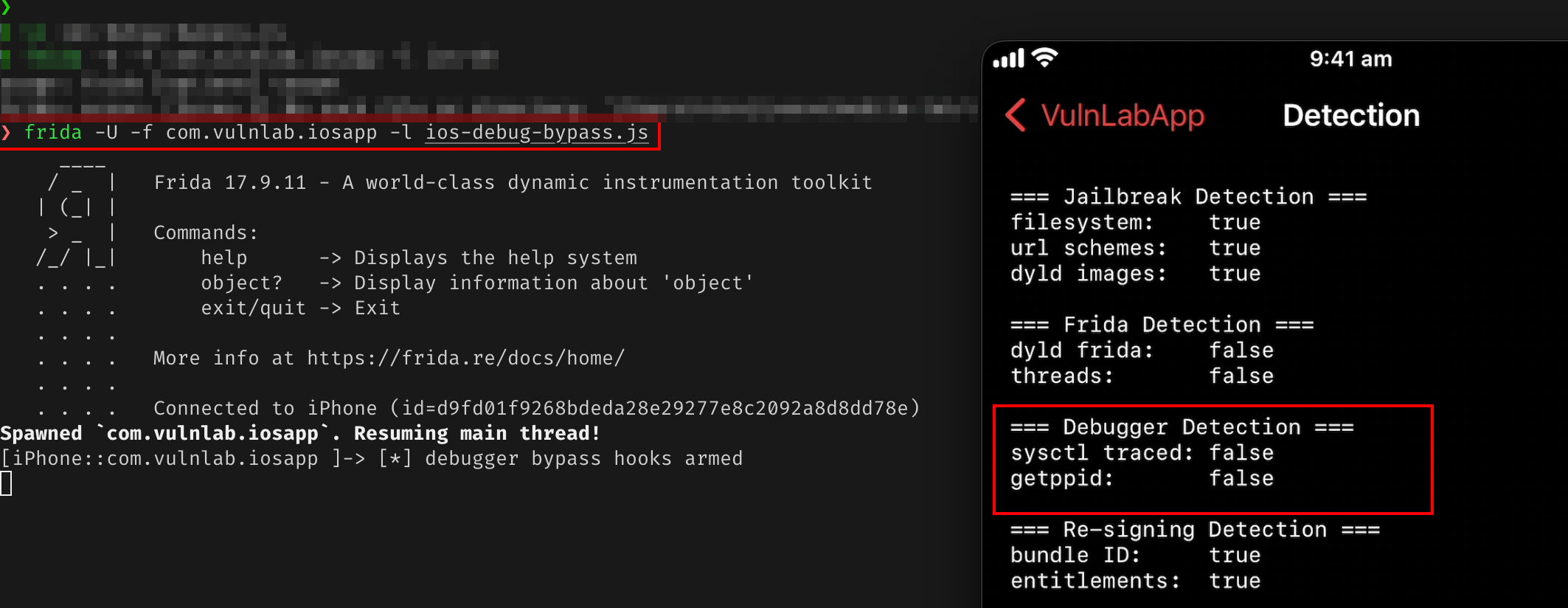

Load it cold-spawn (-f) for best results — ptrace bypass must be in place before startup:

frida -U -f com.vulnlab.iosapp -l ios-debug-bypass.js

For attach (-n), the ptrace bypass is too late, the PT_DENY_ATTACH call already fired during app startup and the kernel has already refused the attach. But the sysctl and getppid bypasses still work for ongoing checks (the polling-style detections that re-check throughout the app’s lifetime).

Native-side variants

Beyond the three syscall-level checks, apps using anti-tamper SDKs add native-side detection:

• Direct task_for_pid calls that should fail for non-privileged callers.
• mach_port_request_notification on the task port, succeeds for debugged processes.
• Comparing _dyld_image_count to expected values.

These are bypassed by hooking the relevant Mach functions. The pattern is the same as the libc hooks but on different symbols (task_for_pid, host_processor_set_priv, etc.).

The “no-debugger” theatre

Apps that combine all the above checks into a deep “is anything attached” routine still fall to the methodology of:

1. Hook exit / abort to see the stack at the moment of detection.
2. Identify the specific check by the calling function.
3. Apply the bypass for that check.
4. Re-attach.

Iterate until the app stops exiting. Usually two or three iterations are enough.

Closing

iOS debugger detection is the bypass-on-attach exercise that every iOS pentester runs at the start of an engagement. The three vectors are well-known. The drop-in script above covers them. For the deeper anti-tamper SDKs, the methodology is hook-exit → see stack → bypass that check → repeat.

Happy Hacking !!
